Design a Catapult

Credit: Regents of the University of Colorado.

Introduce the design challenge. Working in teams of 2–3, participants will use up to 15 craft sticks (including 1 premade catapult arm) and 20 rubber bands to build a catapult. Projectiles launched by the catapult should consistently hit a paper target.

• Talk with your teammates and plan how your catapult will work. It may help to make sketches to communicate your ideas.
• As a team, decide on a design. Build a prototype catapult and test it.
• How far does the projectile travel? How high?
• How can you modify your prototype to hit the target?

Participants redesign and adjust catapults until they hit the target.

Evaluate the success of each design.

• Did the catapult launch a projectile?
• Did the projectile hit the target?
• Could the catapult consistently hit the target?

ACTIVITY VARIATIONS

• Make larger catapults with paint stirrers.
• Challenge participants to design a catapult that can launch a projectile the farthest.

TROUBLESHOOTING

For catapults that are not launching projectiles far enough to hit the target, try:

• Increasing the potential energy of rubber bands by winding or doubling them.
• Moving the bucket farther from the fulcrum.
• Adjusting the angle at which the projectile is released. Aim for 45 ̊.

For catapults that are launching too far, try:

• Adjusting the angle at which the projectile is released.
• Moving the bucket closer to the fulcrum.
• Decreasing tension in rubber bands.

GUIDANCE FOR YOUNGER CHILDREN

QUESTIONS TO ASK AFTER THE ACTIVITY

• What materials did you use to build your catapult?
• How did you change the distance traveled by your projectile?
• Were you able to hit the target?
• If your projectile didn’t fly far enough, what changes did you make to your design?
• If your projectile flew too far, what changes did you make to your design?

GUIDANCE FOR OLDER YOUTH AND ADULTS

QUESTIONS TO ASK AFTER THE ACTIVITY

• How close was your projectile to landing on the target?
• What adjustments did you make to your design to improve its accuracy and consistency?
• How does changing the launch angle affect the distance traveled by a projectile?
• What modifications did you make to change the launch angle?
• What did you use to generate potential energy for your catapult?
• How did you change the amount of potential energy stored in your catapult?

GUIDANCE FOR YOUNGER CHILDREN

Engineering Connections

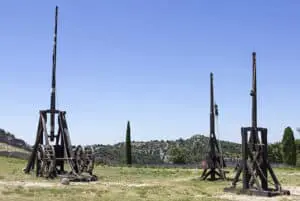

Engineers have been designing and building catapults for thousands of years. The earliest catapults were invented by the Greeks to improve the power of the crossbow. This type of catapult is called a ballista. Over the ages, many other types of catapults were invented. The earliest catapults used energy from a twisted rope that worked like a rubber band to launch darts, bolts, or spears. Like all good engineers, these inventors were always looking for ways to improve on their design. These improvements, called innovations, led to catapults that had greater power and could throw huge boulders thousands of feet. These giant machines, called trebuchets (pronounced treb-you-shay), used energy from a falling weight to rotate the throwing arm and launch the projectile. According to The Guinness Book of World Records, the most powerful trebuchet threw a 1968 Volkswagen Beetle (weighing nearly 1,700 pounds) over 250 feet!

Science Connections

A catapult is an example of a simple machine known as a lever. Levers are used to reduce the amount of force needed to move an object. To do this, levers are made of a strong bar that pivots on a point called the fulcrum. Think of a seesaw: the strong bar is the part you sit on, and the fulcrum is the part in the middle where the seesaw balances. On a seesaw, the force (an upward kick) is applied to the lever to move another person (or load). Adjusting the length of the lever changes the amount of force required to move the load. If you are on a seesaw with someone who weighs a lot less than you do, you scoot forward so that your weight is closer to the fulcrum while the lighter person sits as far from the fulcrum as possible. That way the lighter person can still move a heavier load.

GUIDANCE FOR OLDER YOUTH AND ADULTS

Engineering Connections

Catapults are machines that help us launch objects. Ancient catapults threw rocks or spears, but are there any modern uses for these devices? Target shooters use catapults to launch skeets, or clay disks, into the air. However, one of the most common modern uses for catapults is launching aircraft.

Aircraft carriers don’t have enough room for jets to build up speed for takeoff. Steam-powered pistons push the jet to 165 mph (266 km/h) in 2 seconds. Some new models of aircraft catapults are propelled by electromagnets, which provide smoother operation and put less stress on the jets.

Science Connections

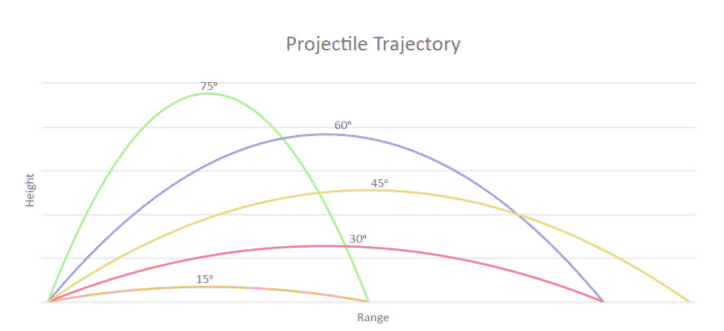

The motion of an object is determined by the forces acting on it. When you launched your projectile, did you notice that it flew in a curved path? There are two forces at work here. First is the force applied by the catapult, which launches the projectile away from the ground. The second is gravity, which pulls the projectile back down to the ground. These two forces combine to make a particular kind of curved path called a parabola. We see this curved path any time a projectile is launched, whether it’s a baseball, a long jumper, or even a watermelon seed spit from your mouth!
